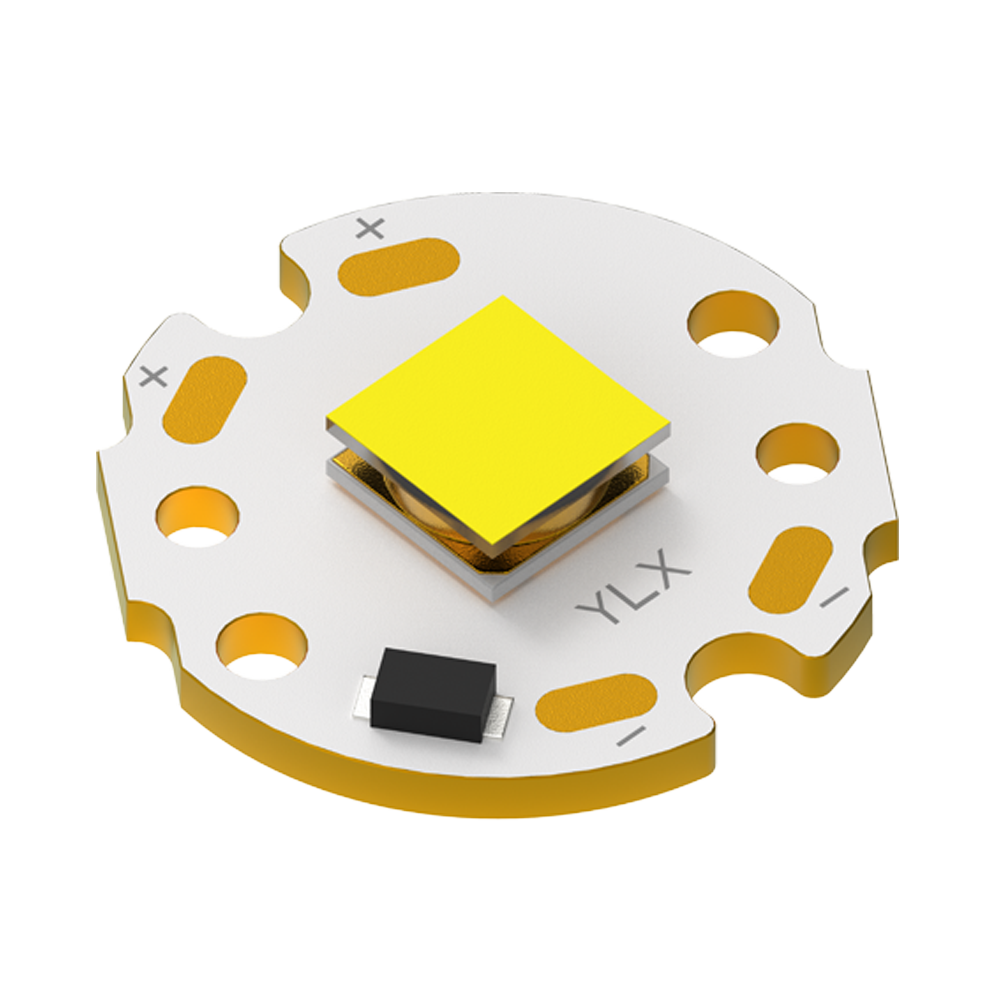

● DPS series is low-power laser module series developed and designed for small lighting fixture and portable lighting equipment.
● Using the most advanced laser phosphor technology to guarantee the best stability and reliability.
● The unique circular structure design can be integrated with the structure of the lighting fixture.
● Laser safety: IEC 60825-1 Class 1 compliant
| Model | Input Power(W) | CCT(K) | Typical Flux(lm) | Suggested Gobo Size(mm) | Range at 1lx(km) | Peak Light Intensity(cd) | Beam Angle 10% of peak |
| SE-1DPS100 | 100 | 6,500 | 5,800 | Φ120 | 4 | 16,000,000 | 1.3° |
Note: Bigger lens normally get higher lx and longer beam distance.
(All above data are typical value, if you need more information, please contact us.)
